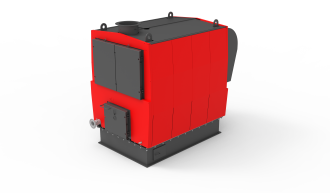

Boiler KVM 0,3
Boiler KVM 0,3 is a compact hot-water boiler of the Eco series with a nominal heat capacity of 300 kW for heating and hot-water supply of small facilities. The model delivers an efficiency factor of at least 85% at a coolant operating pressure of 3-6 bar. A 30-100% power control range and a 250 °С exit gas temperature characterise its operation within this power class.
Specifications
- Nominal heat capacity: 300 kW
- Control range for boiler thermal power: 30-100%
- Efficiency factor, min: 85%
- Operating pressure of the coolant: 3-6 bar
- Sound level, max: 80 dB
- Term of the continuous boiler house operation min: 8000 h/year
- Operational service life: 20 years
- Mains voltage: 380 V; 50 Hz
- Series: Eco
- Exit gas temperature: 250 °С
Scope of Delivery for Boiler Equipment

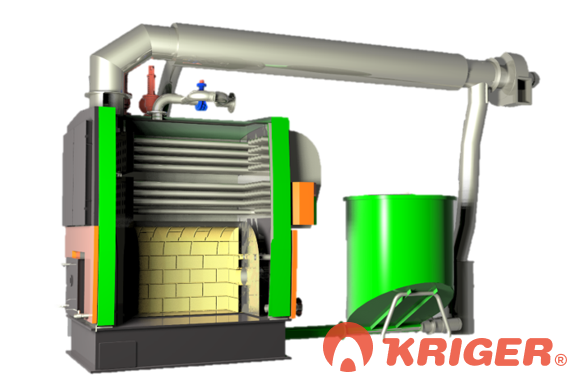

1. Water-heating boiler with a furnace consisting of a retort and a fixed grate;
2. Fuel hopper, 1.3 m³;
3. Screw-type fuel feeder;
4. Flue gas exhaust fan;
5. Set of fans within the boiler;
6. Set of shut-off and control valves;
7. Control system;
8. Documentation (boiler certificate, operating manual, bill of materials, service log).
