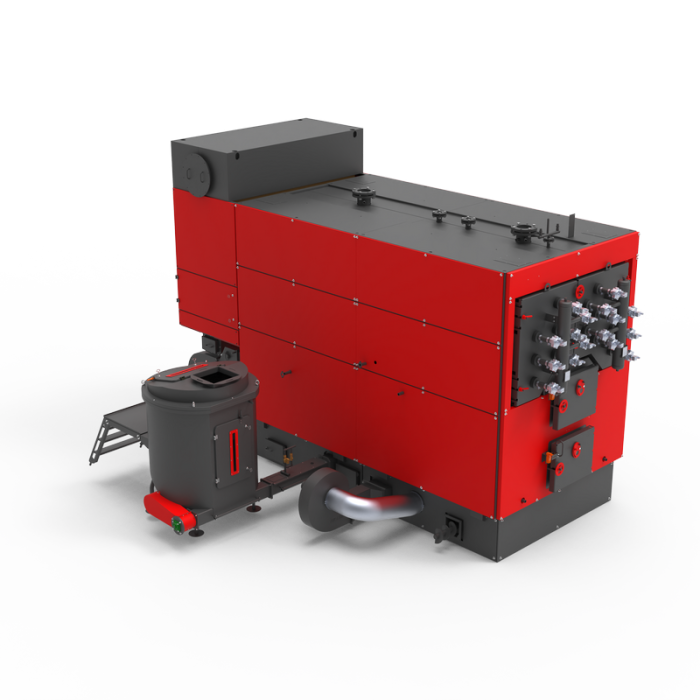

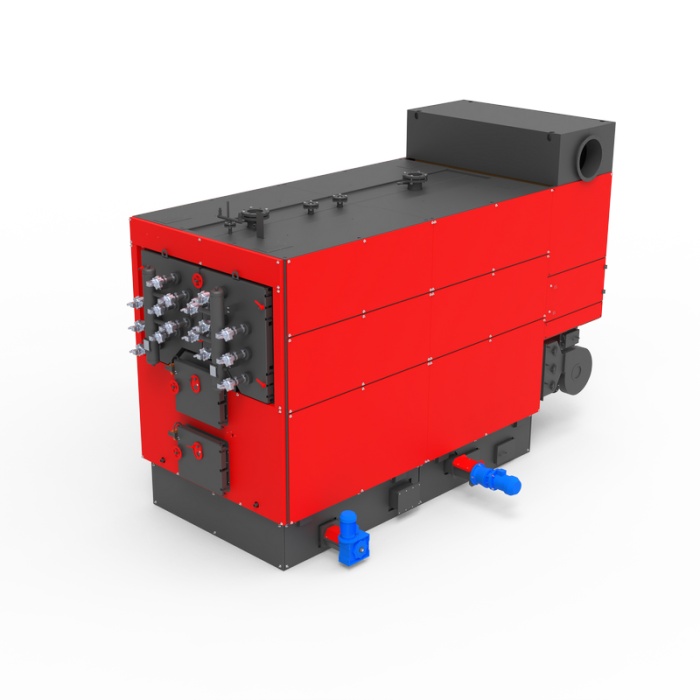

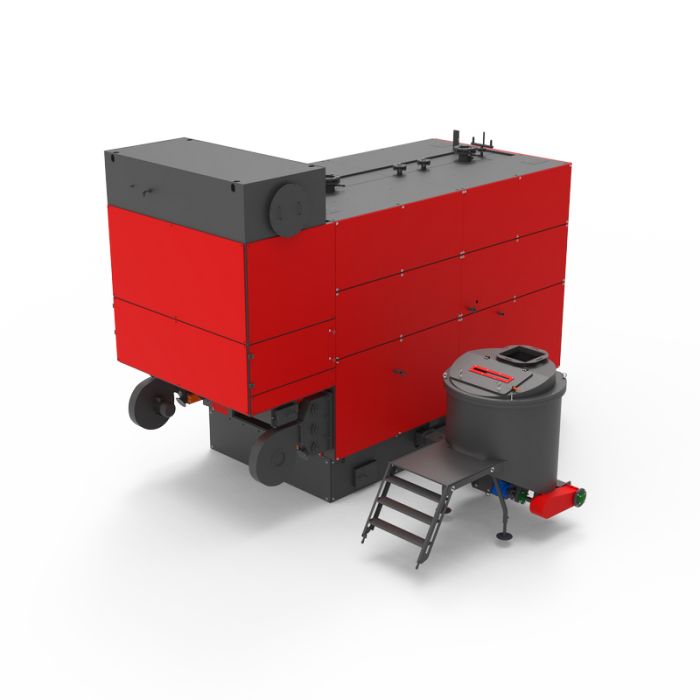

Boiler KVM(a) 1,752
Boiler KVM(a) 1,752 is a hot-water boiler of the Hybrid series with a nominal heat capacity of 1750 kW, intended for heat supply of industrial, commercial and municipal facilities. The model delivers an efficiency of at least 85% and wide power modulation across the 30-100% range, allowing the heat output to be matched flexibly to the current load. An operating coolant pressure of 3-6 bar and an exit gas temperature of 160 °С define its steady operating mode throughout the heating season.
Specifications
- Control range for boiler thermal power: 30-100%
- Efficiency factor, min: 85%
- Exit gas temperature: 160 °С
- Operating pressure of the coolant: 3-6 bar
- Sound level, max: 80 dB
- Term of the continuous boiler house operation min: 8000 h/year
- Operational service life: 20 years
- Mains voltage: 380 V; 50 Hz
- Nominal heat capacity: 1750 kW
- Series: Hybrid
Scope of Delivery
1. Kriger KVm Hybrid water-heating boiler unit, consisting of a heat exchanger and a retort base;
2. Screw-type fuel feeding device with a 1.3 m³ hopper;
3. Multicyclone filter;
4. Frequency-controlled induced draft fan;
5. Set of frequency-controlled blast fans;
6. Pneumatic heat exchanger cleaning system;
7. Automatic ash removal system from the furnace and multicyclone;
8. Set of shut-off and control valves within the boiler;
9. Automatic monitoring and control system for the unit;
10. Documentation (boiler specifications, operating manual, bill of materials, service log).
