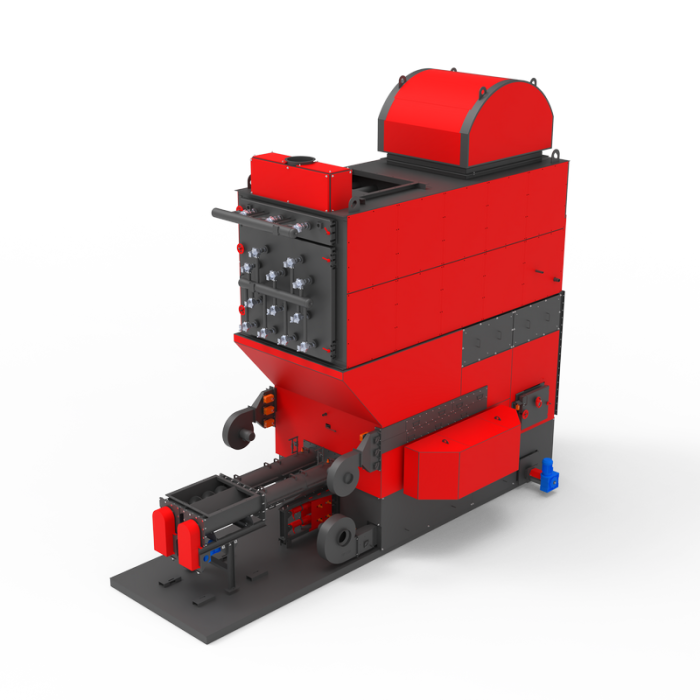

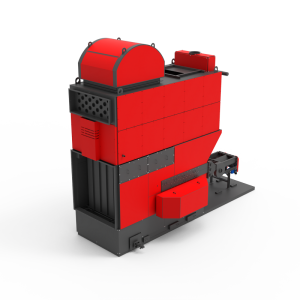

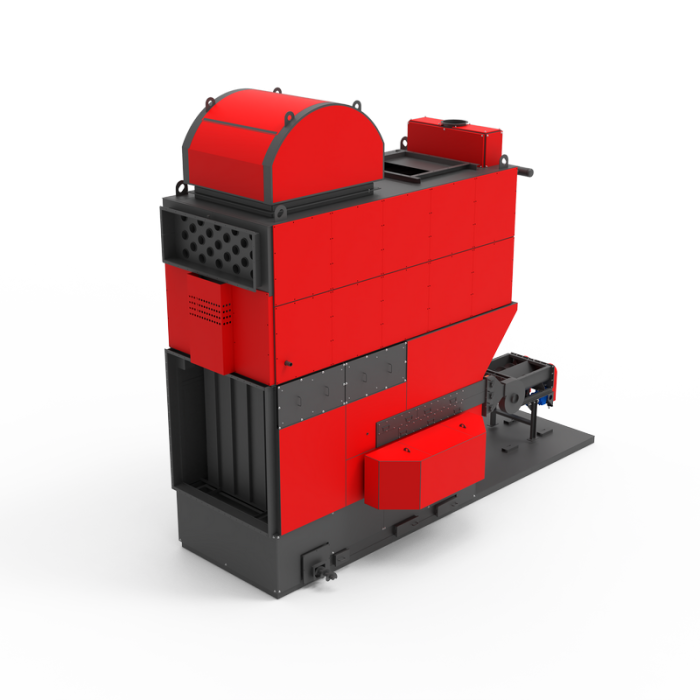

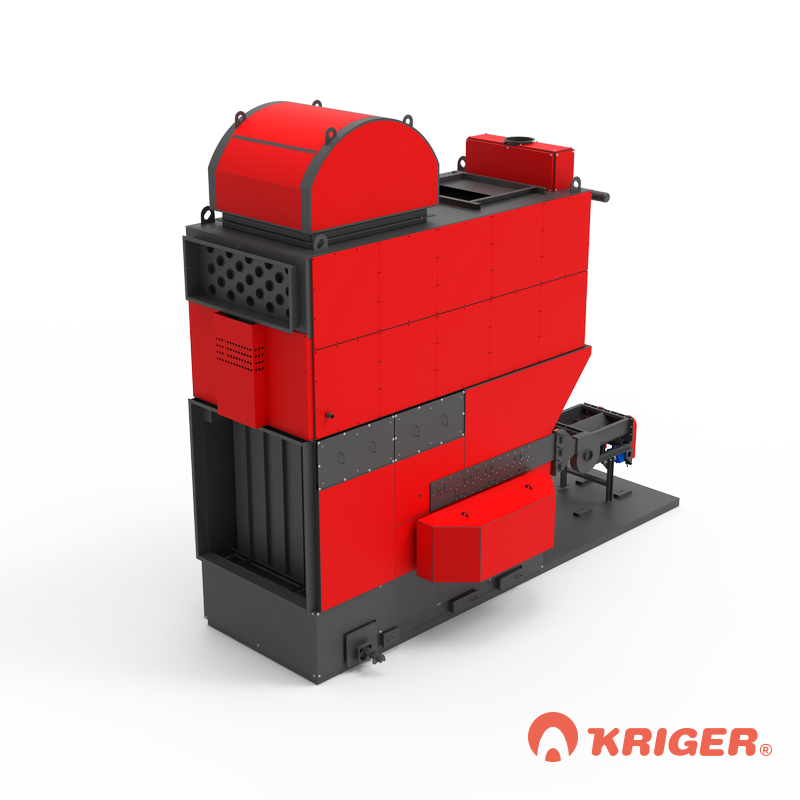

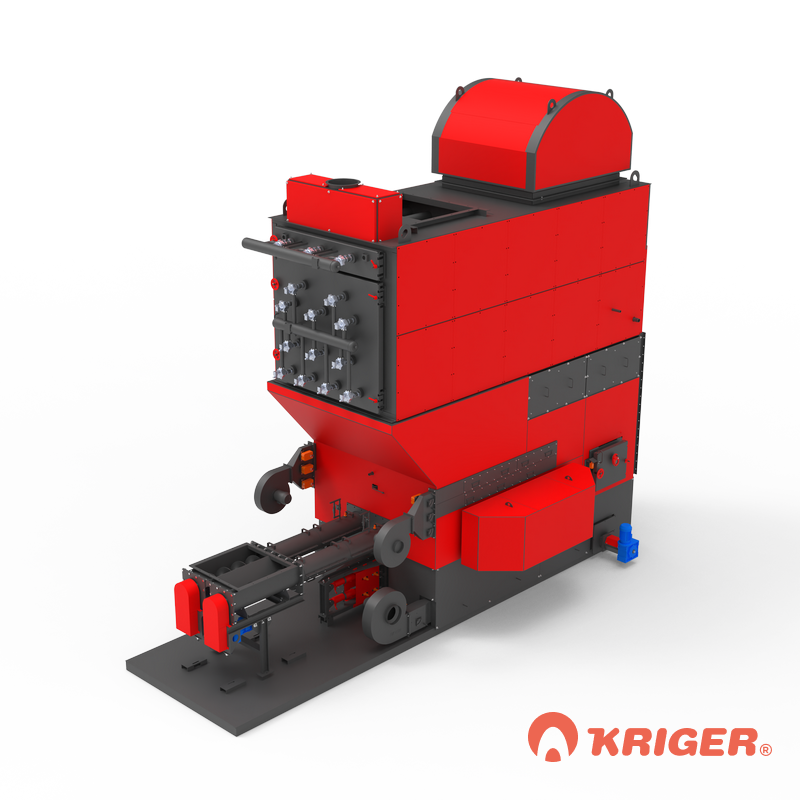

Heat generator TGm - 3,0
Heat generator TGm - 3,0 is a high-power non-contact unit for direct air heating in industrial heating, drying and ventilation systems. The model delivers a nominal heat capacity of 3000 kW, making it suitable for warming large production and storage areas. The non-contact design supplies hot air without direct contact between the air stream and the combustion products.
Specifications
- Nominal heat capacity: 3000 kW
- Generator type: Non-contact
Scope of Delivery for Boiler Equipment
1. Air-cooled furnace unit based on a hydraulic inclined movable grate;
2. Screw- or plunger-type fuel feeding system with a storage hopper;
3. Mixing and settling chamber;
4. Automatic ash removal system from the combustion unit;
5. Set of frequency-controlled blast fans;
6. Set of flue gas ducts and air ducts within the plant;
7. Instrumentation, automation, and cabling infrastructure;
8. Automatic monitoring and control system for plant operation;
9. A set of hydraulic stations and their infrastructure for controlling the grate and gates;
10. Documentation (technical specifications, operating manual, bill of materials, service log, specifications for foundations and utility networks).
